The Series 8500 series is a high-power fully automated testing system designed specifically for testing the performance of EVs and any other energy storage devices under real conditions. This testing system can support the feedback of discharge energy to the power grid.

application area

Energy storage devices for EV, HEV, PHEV batteries using all chemical materials

Power transmission system and engine

High power PV system

High-power fuel cell

Specification parameters

Maximum voltage: 1000V

Minimum voltage: 1% FS

Voltage accuracy: Soil 0.02% FS 0.02% RD

Maximum current: 1000A

Minimum current (constant current and constant power mode): 1% FS

Current accuracy: ± 0.05% FS 0.1% RD

Equipment power: unlimited, maximum power is P=U * I

Device resolution: 16 bits

Partial product configuration selection

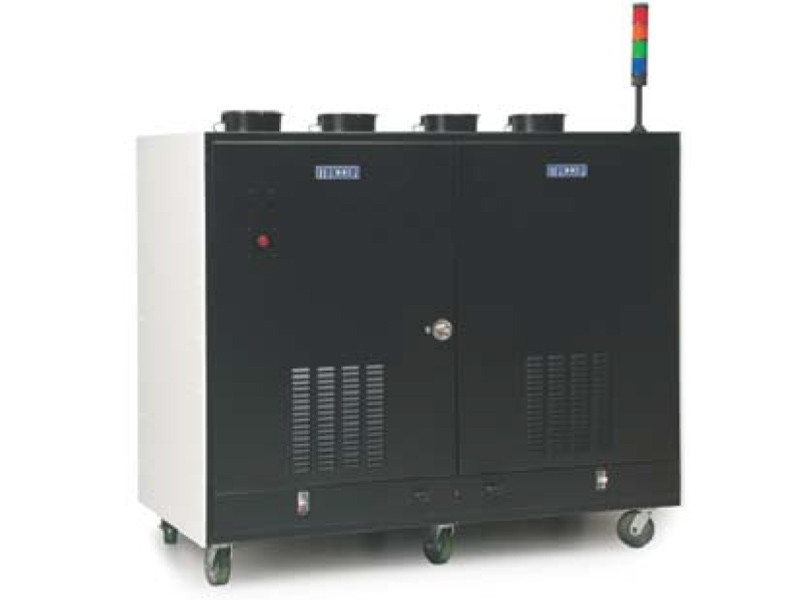

Series8500 Series - Battery Pack Body Testing System
