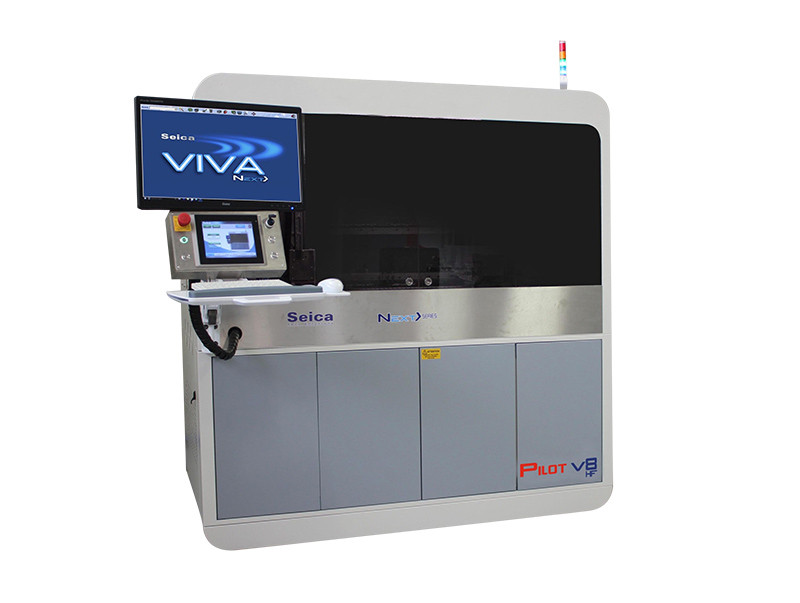

Seica Pilot4DLine Flying Needle Testing Machine

Pilot4DThe V8 flying needle testing machine is the latest leading product in the field of flying needle testing. Its comprehensive testing methods can meet the maximum needs of users: ultra-high testing speed, adaptability to small to medium batch testing requirements, full testing coverage, and flexible applications. All of this, whether it is sample production, manufacturing or maintenance customers, can handle testing of various types of circuit boards. Moreover, due to its vertical structure, it can perform flying needle testing on both sides of UUT simultaneously, highlighting itsPilot4D V8Unparalleled advantages! On the premise of ensuring fast speed, high accuracy, good reliability, and consistent needle repeatability, not only does it greatly increase the amount of testing, but it also improves the flexibility of use. At the same time, all mobile testing resources can be configured and applied to UUT testing. This solution for disposable double-sided flying needle testing is a significant technological innovation: it overcomes the limitation of horizontal flying needle testing systems that cannot simultaneously perform double-sided flying needle testing.Pilot4D V8Equipped with 8 movable electrical testing probes (4 on each side), 2 Openfix mobile probes (1 on each side), and 2 movable power pins (1 on each side), there are a total of 14 movable testing resources available for users to use for UUT testing. The advantage of being able to move the power pin to users is that it does not require any additional fixed cables to connect the UUT to power, making it easy to perform functional testing!

Pilot4DV8Testing methods and technical characteristics:

FNODE: Network Signal Analysis on UUT

Standard analog and digital ICT testing

Vector free testing (JSCAN and OPENFIX) to test open and short circuits of various ICs

PWMON is used for network analysis of circuit boards after power on

Used for conducting conductivity tests to detect open circuits in printed circuit boards

Automatic optical testing for missing and reversed components on circuit boards

Optional functional testing and boundary scan testing

On board programming for digital devices

Thermal scanning device

All of these testing methods and techniques can be integrated into one testing program, which is a significant innovation. This means that measurement techniques such as FNODE and PWMON, which are associated with the network, can be implanted into the program. With this effective method of reducing programming and testing time, it provides users with a new and easy to operate concept with high fault testing coverage. Additionally, due toPilot4D V8It has all the testing resources and is also equipped with all the configurations of Seica's flying needles (single-sided or double-sided, 2 or 4 flying needles), so it can run any program generated on all other flying needle testing systems.

VIP platform

Pilot4D V8It is based on the VIP platform of Seica, including innovative VIVA testing software. The testing program only requires three steps to complete: "preparation", "confirmation", and "testing". From the beginning of the software interface, it guides the operator to program through a series of intuitive automatic downward operation pages with self annotation environment, greatly reducing programming time and minimizing or even eliminating errors.

For certain special applications, the internal structure of the VIP platform can be deeply opened, and external software and/or hardware can be easily integrated with it through interfaces such as RS232, USB, GPIB, and PXI/XI protocols.
