Product characteristics

PH（10g/L:11.3-12.3

Flash point: No flash point

Boiling point: 98 ℃

Water solubility: soluble

VOC，@ 10%  ＜0.10  g/L

Main processes

Cleaning method: Spray/Ultrasonic

Usage concentration: Spray 3-8%, soak 7-12%

Temperature: 48-70 ℃

Rinse: Rinse or not rinse

Drying: blow dry

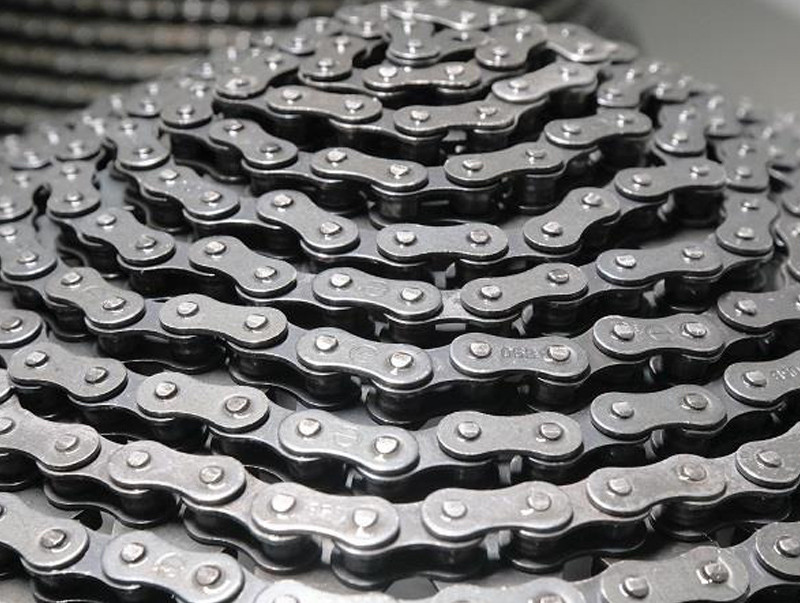

TENIC ® B3310 is a weakly alkaline water-based environmentally friendly cleaning agent designed to remove rosin, carbon deposits, and other pollutants from wave soldering/reflow soldering chains. B3310 is also very effective in cleaning tungsten carbide and other metal materials that are prone to chemical corrosion.

○ No amine components.

Contains preservatives that can effectively protect aluminum, copper, and other alloy materials.

○ Suitable for aerial spraying and ultrasonic cleaning equipment

○ Environmental Protection

Environmental, Health, and Safety Regulations

TENIC ® B3310 is a harmless, biodegradable water-based cleaning agent. Does not contain CFC or HAP.

For detailed information, please refer to the safety data sheet.

compatibility

TENIC ® B3310 is compatible with all materials commonly used in electronic assembly manufacturing and cleaning processes.

If you need specific and more detailed compatibility information, please contact our sales representative.

Free cleaning experiment and process optimization

We will provide customers with free cleaning and experimental services at the customer's factory end or in the laboratories designated by Singapore and Chinese Mainland to ensure that you achieve your goals. Improve product yield and reliability by identifying and adjusting important parameters of your cleaning process. We promise to have professional knowledge and understanding of your process. We can simulate your cleaning process and tailor it to your actual situation

The laboratory is equipped with various cleaning equipment and analyzers, including:

○ Batch cleaning equipment

○ Scanning electron microscope

Online cleaning equipment

○ Ion analyzer

○ Ultrasonic waves

○ FTIR spectrometer

○ High magnification microscope

○ Humidity chamber
